自營MCU/ST 意法半導體/ST 意法半導體微控制器 STM32主流MCU STM32F030C8T6

商品名稱：ST 意法半導體微控制器 STM32主流MCU STM32F030C8T6

商品型號：STM32F030C8T6

數據手冊：

品牌：ST 意法半導體

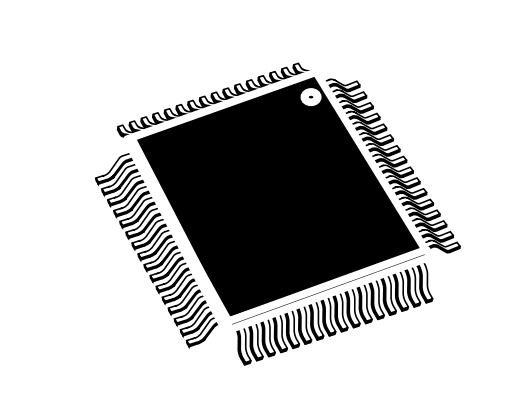

封裝規格：LQFP48

商品類別：

二級分類：自營MCU

商品批號：1742/A/QX

貨期：現貨

商品編號：

商品重量：0.1kg

庫存數量：9999 個

單價：￥ 10000.0000 詢價

訂購量：

產品詳情
相關產品

ST 意法半導體微控制器 STM32高性能MCU STM32F767VIT6描述

The STM32F030x4/x6/x8/xC microcontrollers incorporate the high-performance Arm? Cortex?-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs and up to six USARTs), one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer. The STM32F030x4/x6/x8/xC microcontrollers operate in the -40 to +85 °C temperature range from a 2.4 to 3.6V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.
The STM32F030x4/x6/x8/xC microcontrollers include devices in four different packages ranging from 20 pins to 64 pins. Depending on the device chosen, different sets of peripherals are included. The description below provides an overview of the complete range of STM32F030x4/x6/x8/xC peripherals proposed.
These features make the STM32F030x4/x6/x8/xC microcontrollers suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

ST 意法半導體微控制器 STM32高性能MCU STM32F767VIT6所有功能

Core: Arm? 32-bit Cortex?-M0 CPU, frequency up to 48 MHz
Memories

16 to 256 Kbytes of Flash memory
4 to 32 Kbytes of SRAM with HW parity

CRC calculation unit
Reset and power management

Digital & I/Os supply: VDD = 2.4 V to 3.6 V
Analog supply: VDDA = VDD to 3.6 V
Power-on/Power down reset (POR/PDR)
Low power modes: Sleep, Stop, Standby

Clock management

4 to 32 MHz crystal oscillator
32 kHz oscillator for RTC with calibration
Internal 8 MHz RC with x6 PLL option
Internal 40 kHz RC oscillator

Up to 55 fast I/Os

All mappable on external interrupt vectors
Up to 55 I/Os with 5V tolerant capability

5-channel DMA controller

One 12-bit, 1.0 μs ADC (up to 16 channels)

Conversion range: 0 to 3.6 V
Separate analog supply: 2.4 V to 3.6 V

Calendar RTC with alarm and periodic wakeup from Stop/Standby
11 timers

One 16-bit advanced-control timer for six-channel PWM output
Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding
Independent and system watchdog timers
SysTick timer

Communication interfaces

Up to two I2C interfaces
Up to six USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection
Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames

Serial wire debug (SWD)
All packages ECOPACK?2
